Sliding Door Components

•  Engineered to integrate with 2200 Series (1-1/2" Systems): Primarily used with the 2244 Bottom Rail for intermediate sliding door systems.

• Rail Construction: Features an 18-gauge galvanized steel guide rail.
• Bracket Construction: Utilizes 2-inch wide, 11-gauge steel brackets for secure mounting.
• Standard Lengths: Available in sections of 5’, 6’, 8’, 10’, 12’, 14’, and 16’.
• Finish: Typically supplied with a zinc-plated finish to resist corrosion and rust.

• Wall Protection: By maintaining a fixed distance between the door and the building, it prevents the door from scraping or damaging the exterior siding.

A specialized cam-action fastener manufactured by MWI Components, specifically designed to secure sliding doors tightly against the door jamb, providing a reliable method to stabilize doors in agricultural and post-frame buildings against wind rattle and weather infiltration.

• Hook Length: Features a 7" adjustable hook to provide variable tension when snugging the door.
• Operating Mechanism: Utilizes an over-center cam-action locking handle that pulls the door inward as the handle is flipped.
• Material & Finish: Constructed from heavy-duty steel with a zinc-plated finish for long-term corrosion resistance.
• Application Hardware: Packaged with three (3) #12x1" flat head wood screws for direct mounting to wood framing.

• Universal Handing: The reversible design allows for installation on either right-hand or left-hand door applications.
• Weather Protection: By holding the door firmly against the jamb, it creates a tighter seal while reducing wind-related damage.
• Adjustability: The threaded hook can be adjusted for length, allowing users to fine-tune the tension of the closure to accommodate different door thicknesses or framing variations.

For double sliding doors, it is recommended to use these in conjunction with a center latch or snugger to ensure the entire door system is immobilized against the building.

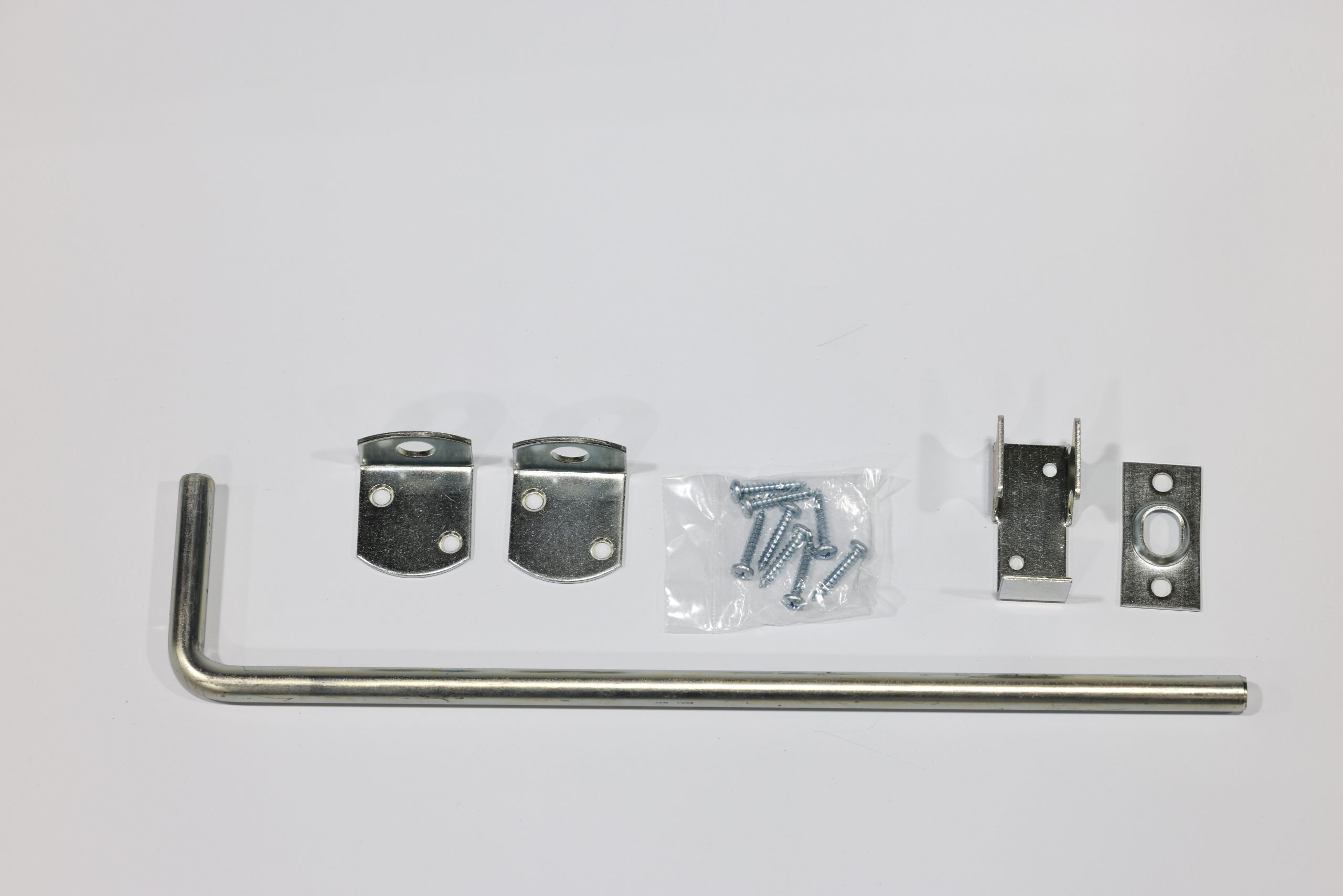

R250S-18 Cane Bolt is a heavy-duty drop rod designed to secure the bottom of sliding doors, gates, and barn doors in a fixed position. By anchoring the door into the ground or a floor receiver, it prevents swaying, drifting, or damage caused by high winds.

• Dimensions: Features a sturdy 18-inch-long solid steel rod.
• Material & Finish: Constructed from heavy-gauge steel with a zinc-plated finish for superior rust and corrosion resistance, making it suitable for long-term outdoor use in agricultural environments.
• Included Hardware: Each unit is packaged with (8) #14x1¼" pan head wood screws.

• Stability & Security: Primarily used to hold a door or gate stationary in either the fully open or fully closed position.
• Gravity-Operated Design: The bolt is lowered manually into a hole in the ground or a receiver; when not in use, the handle can be lifted and rotated into a "hold-up" bracket to prevent it from dragging.
• Double-Door Application: On bi-parting or double-gate systems, the cane bolt is often used to fix one leaf in place so the other leaf can latch securely against it.

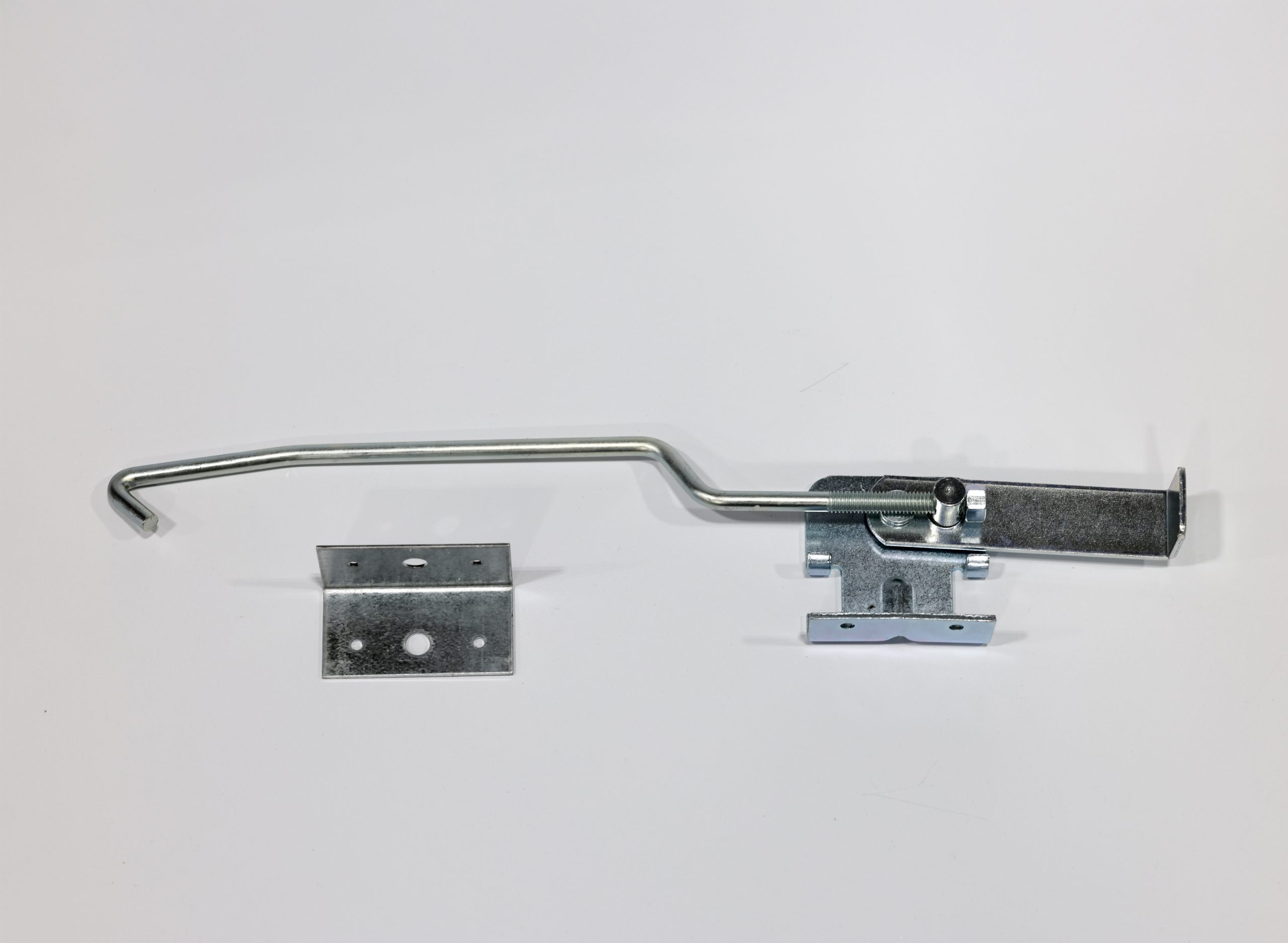

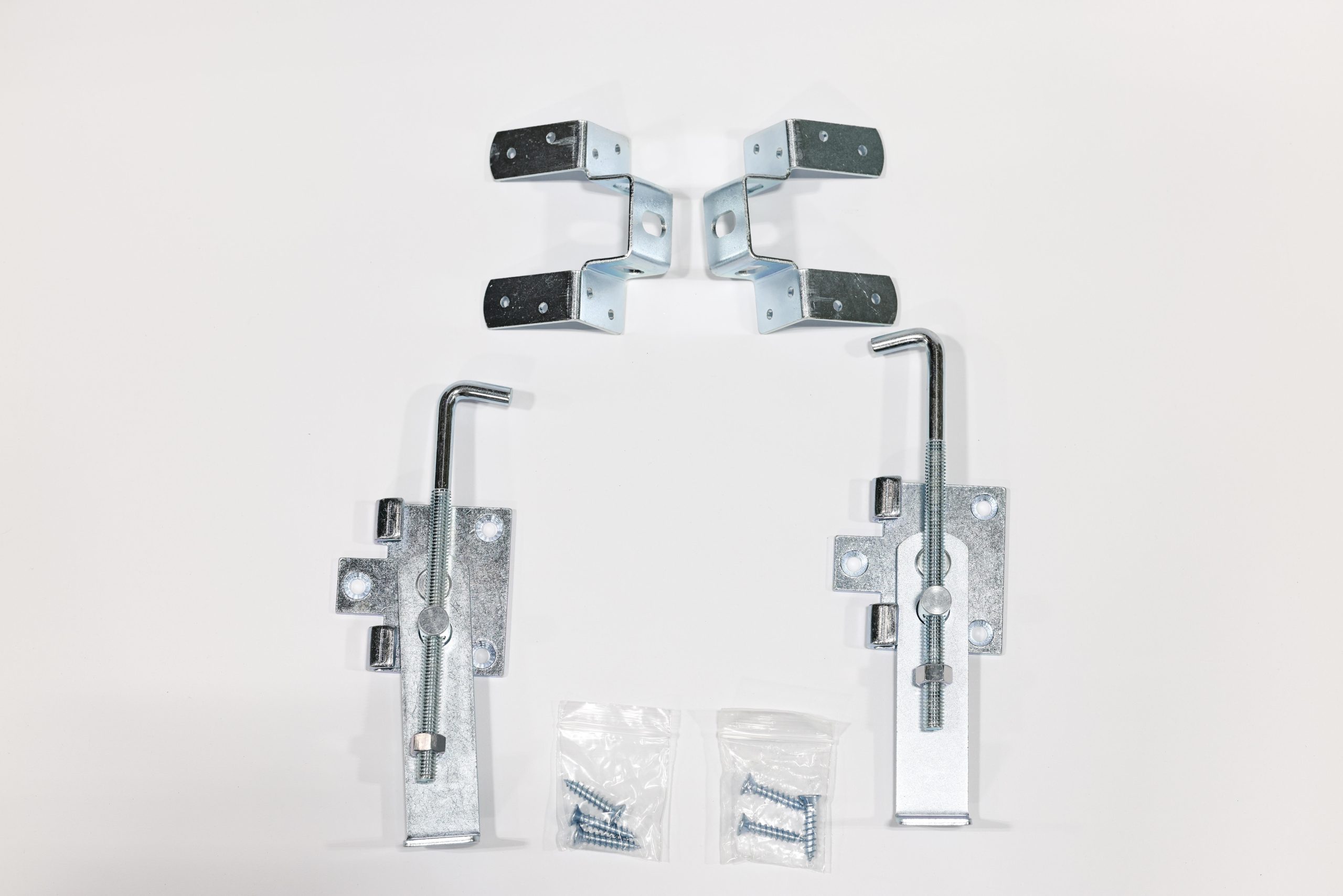

The PB128 Center Latch is a heavy-duty cam-action fastener from MWI Components, specifically engineered to secure split sliding doors. It provides a high-tension closure that pulls the two door leaves together, ensuring a tight seal at the center meeting point.

Technical Specifications

• Hook Length: Equipped with an extra-long 10.5" adjustable hook, designed to span the gap between split doors.
• Operating Mechanism: Features a cam-action handle that uses leverage to pull doors into a locked, rattle-free position.
• Compatibility: Designed for use with both split wood and metal door systems.
• Material & Finish: Constructed from durable, heavy-gauge steel with a zinc-plated finish for superior resistance to the elements.

• Enhanced Reach: The 10.5" hook length is significantly longer than standard jamb latches (like the 7" PB121W), allowing it to effectively reach across the center gap of split sliding doors.
• Security & Stability: Prevents doors from "flapping" or being forced open by wind pressure at the center point where they are most vulnerable.
• Adjustable Tension: The threaded hook allows for fine-tuned adjustments to ensure the doors are pulled together with the exact amount of force required, even if the doors have slight alignment variations.

The BC85C Center Door Guide (Part Number: 100850000) is a professional-grade hardware solution manufactured by MWI Components. It is specifically engineered to stabilize the bottom of large sliding doors on post-frame and agricultural buildings, ensuring they remain on track and do not sway in the wind or pull away from the structure.

• Design: Low-profile, heavy-duty "ramp" design.
• Material: Durable galvanized steel for maximum weather and corrosion resistance.
• Included Hardware: Packaged with (6) #14x2½" lag bolts for heavy-duty mounting.

• Drive-Over Protection: The specialized ramped edges allow equipment and vehicles to drive over the guide without damaging tires or bending the hardware, making it ideal for high-traffic shop and barn entries.
• Versatile Mounting: This unit is designed for flexible installation; it can be secured directly into a concrete floor or mounted to the top of a 6x6 pressure-treated post buried at the door's center point.
• Dual-Purpose Functionality: While it serves as a robust guide for single sliding doors, it is also perfectly suited for split (bi-parting) doors.
• Removable T-Stop: The guide includes a T-stop that can be fastened directly to the guide. This stop acts as a physical limit for split doors, ensuring they meet perfectly in the center and do not over-travel.

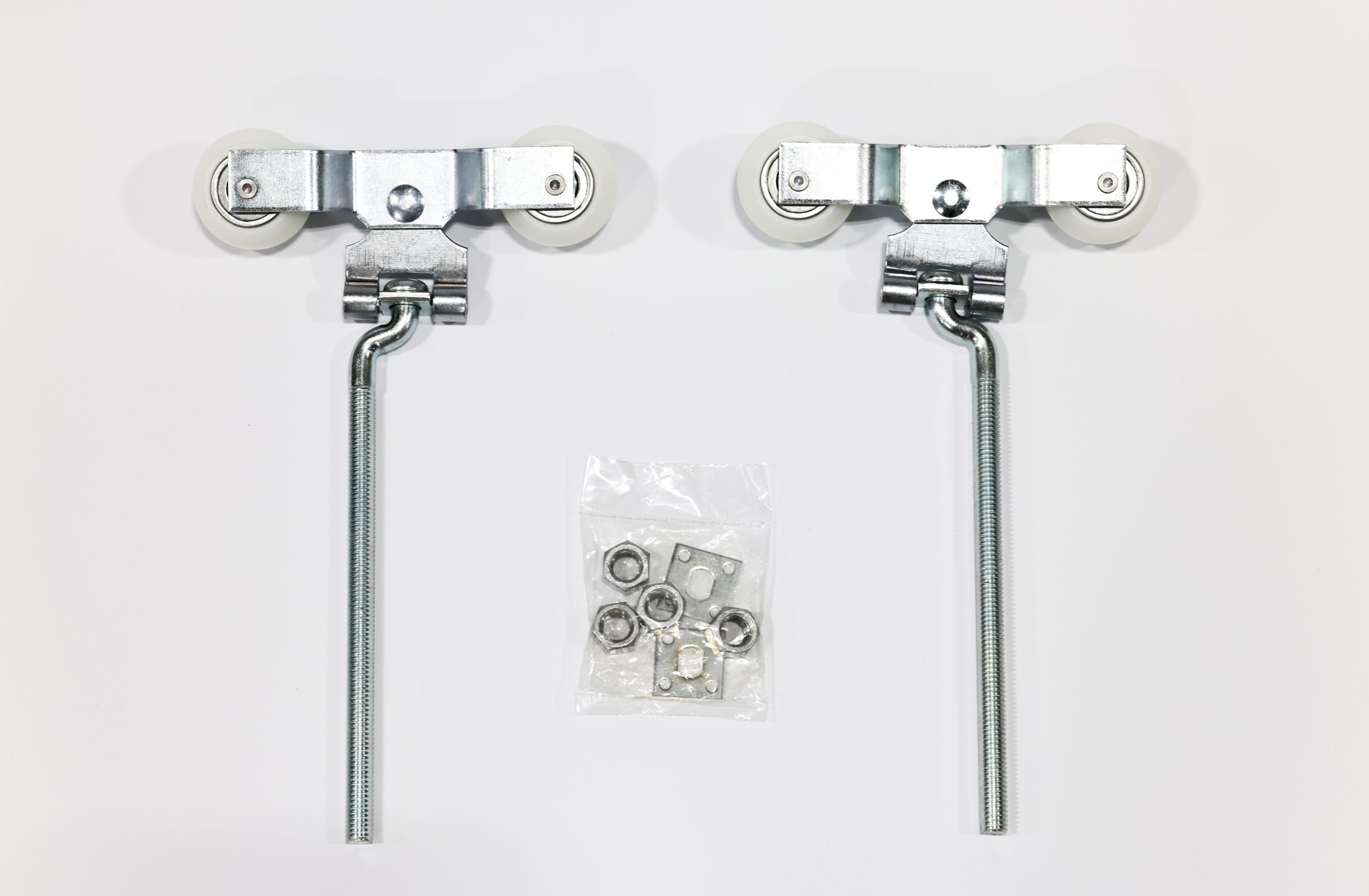

The PB25T9 Sliding Door Trolley is a heavy-duty, commercial-grade trolley designed for high-performance operation of large sliding doors. Engineered by MWI Components, this hanger features a 9.5" offset bolt specifically designed for wood or metal frame doors weighing up to 600 lbs.

• Weight Capacity: Rated for doors up to 600 lbs per pair.
• Bolt Length: Includes a 9.5-inch offset pendant bolt.
• Hardware: Features a 1½" washer equipped with a flexible seat, which allows for slight door movement and reduces stress on the track and trolley during operation.
• Bearing Type: Equipped with precision ball bearings for smooth, quiet, and long-lasting door movement.

• Offset Design: The offset bolt provides the necessary clearance to ensure the door hangs vertically and glides without rubbing against the track or the building.
• Flexible Mounting: The flexible seat design compensates for minor misalignments or building settling, preventing the trolley from binding in the track.
• Universal Application: Compatible with both wood frame and metal frame door systems in agricultural, industrial, and post-frame buildings.

The PB25T9 is designed to run inside standard round track systems. For optimal performance, it should be paired with MWI round track and matching brackets to ensure the 600 lb weight rating is maintained across the entire assembly.

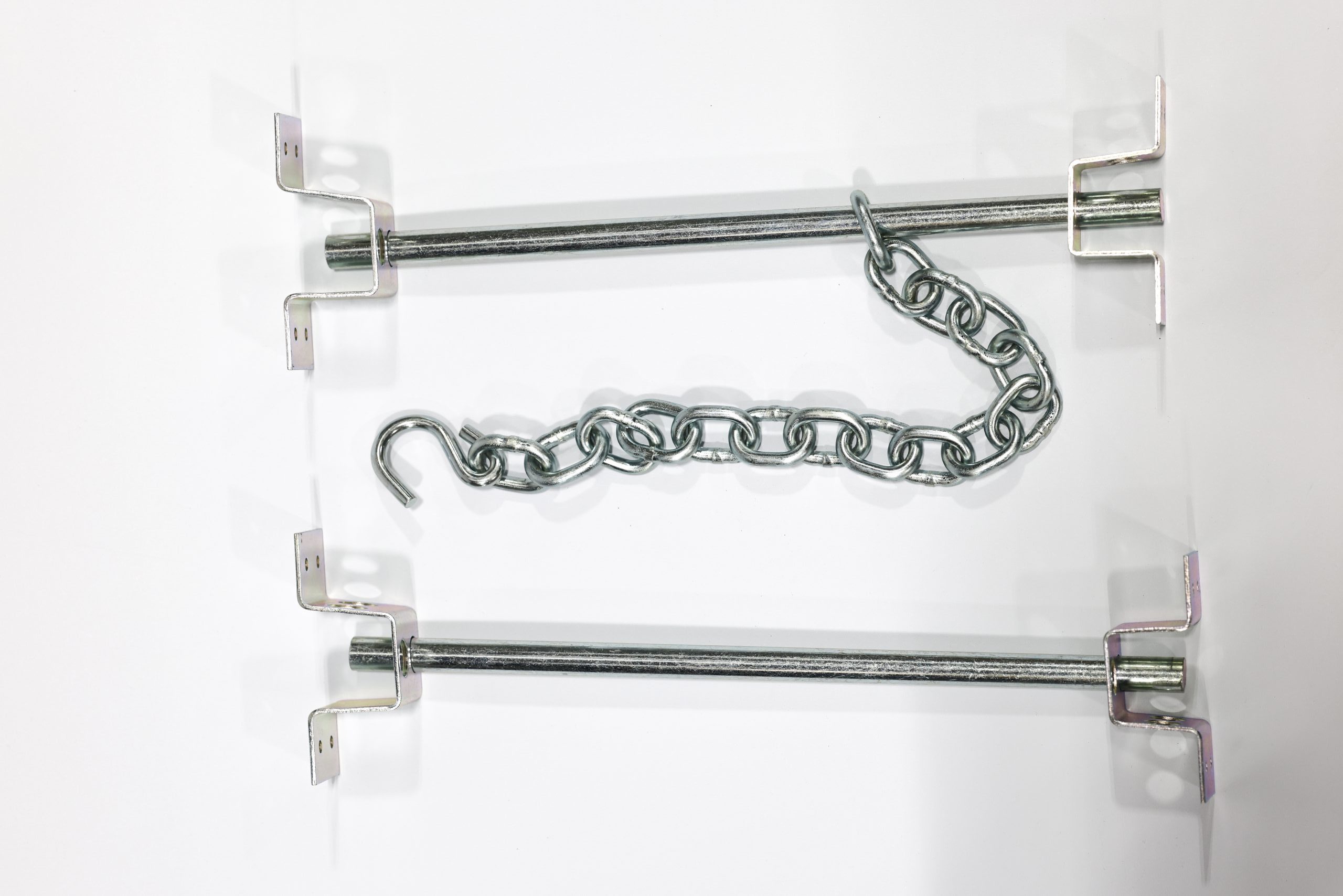

The PB127S Chain Snugger is a rugged, manual tensioning device designed by MWI Components to pull split sliding doors tightly together. This component is essential for securing large wood or metal doors that are prone to bowing or rattling due to high winds or temperature shifts.

• Application: Designed specifically for split (bi-parting) doors.
• Material: Heavy-gauge steel construction for high-tensile strength.
• Finish: Zinc-plated for maximum protection against rust and environmental wear.

• Gravity-Fed Tensioning: The rods are installed upright but angled away from each other toward the base. As the chain is hooked across and allowed to drop, its own weight and the natural "V" shape of the rods force the doors to pull tighter together as the chain slides down.
• No-Moving-Parts Reliability: Because there are no cams, springs, or levers to break or seize, this is one of the most durable and maintenance-free options for securing barn and shop doors.
• High-Wind Resistance: The heavier the wind pressure or vibration, the further the chain tends to settle down the tapered rods, maintaining a constant, snug fit.
• Universal Compatibility: An excellent solution for both wood and metal frame split doors, regardless of door thickness.

Installation & Operation

1. Mounting: One rod is mounted to the vertical edge of each door leaf at a comfortable reaching height.
2. Engagement: Push the split doors together until they meet.
3. Securing: Take the chain (attached to the first rod) and loop it over the rod on the opposite door.
4. Tensioning: Simply let go of the chain. The angled geometry of the rods ensures that the chain tightens automatically as it slides toward the bottom, firmly locking the doors in place.
5. The PB127S is the preferred choice for owners who want a "fail-proof" locking system. It effectively eliminates door rattle and prevents the center of the doors from being pushed inward or pulled outward by heavy gusts of wind.

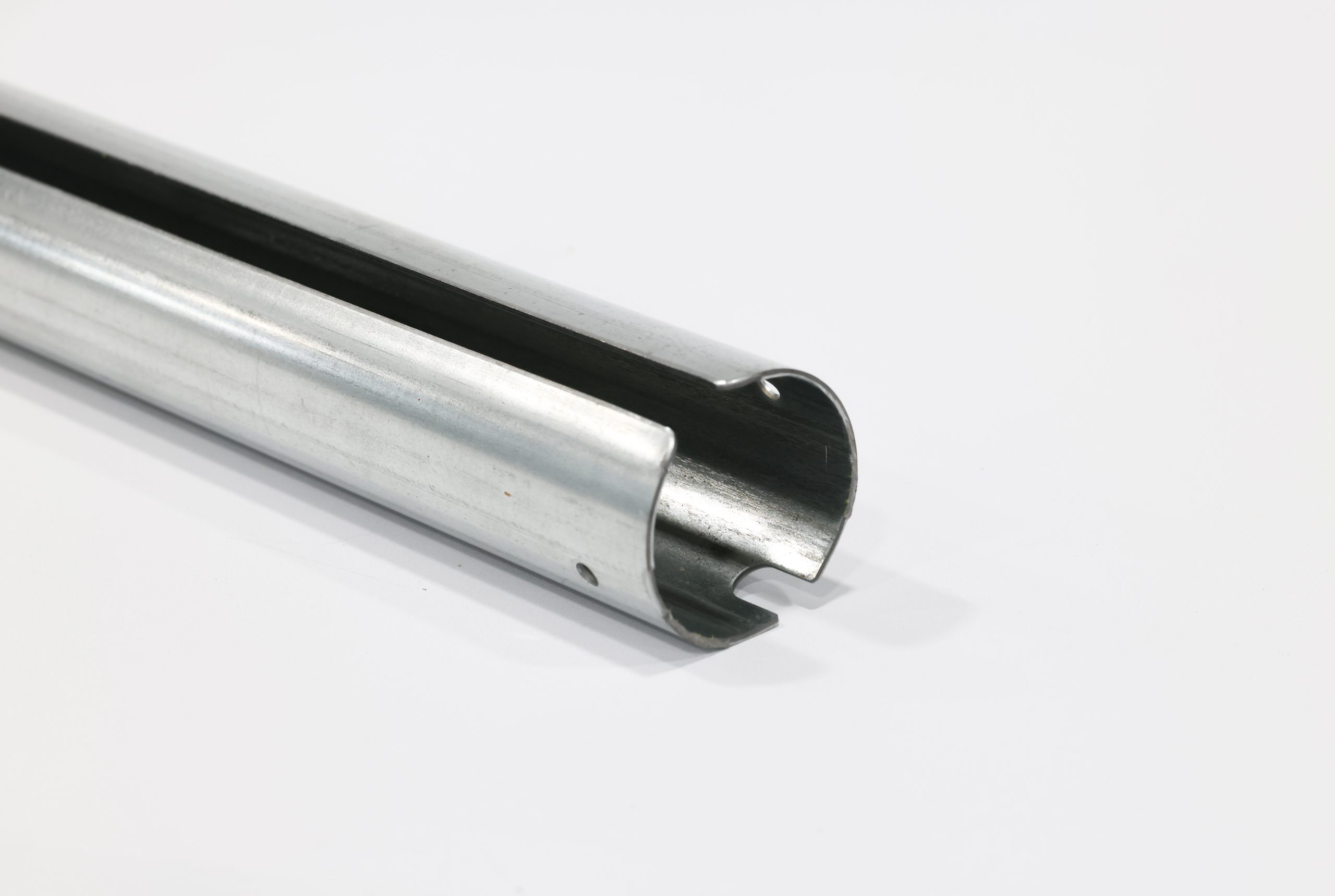

The BC201 Versa Track is a professional-grade 14-gauge round track system designed by MWI Components for high-capacity sliding doors. Engineered for both strength and ease of installation, this track supports door systems weighing up to 600 lbs and is a staple in the post-frame and agricultural building industry.

• Material: High-tensile 14-gauge steel for maximum structural integrity.
• Weight Capacity: Rated to support doors up to 600 lbs when used with compatible hangers.
• Design: Round track profile for smooth, self-centering trolley operation.
• Mounting Feature: Features reverse-punched keyhole slots spaced every 24 inches, allowing for secure bracket attachment.
• Available Lengths: Supplied in even increments to fit any door opening: 8', 10', 12', 14', 16', 18', 20', and 24'.

• Versatile Configurations: Designed for use with MWI round track brackets in both single and double track runs (bi-parting or bypassing systems).
• Smooth Operation: The round profile minimizes friction and debris buildup, ensuring that trolleys (like the PB25T9) glide effortlessly along the entire length of the run.

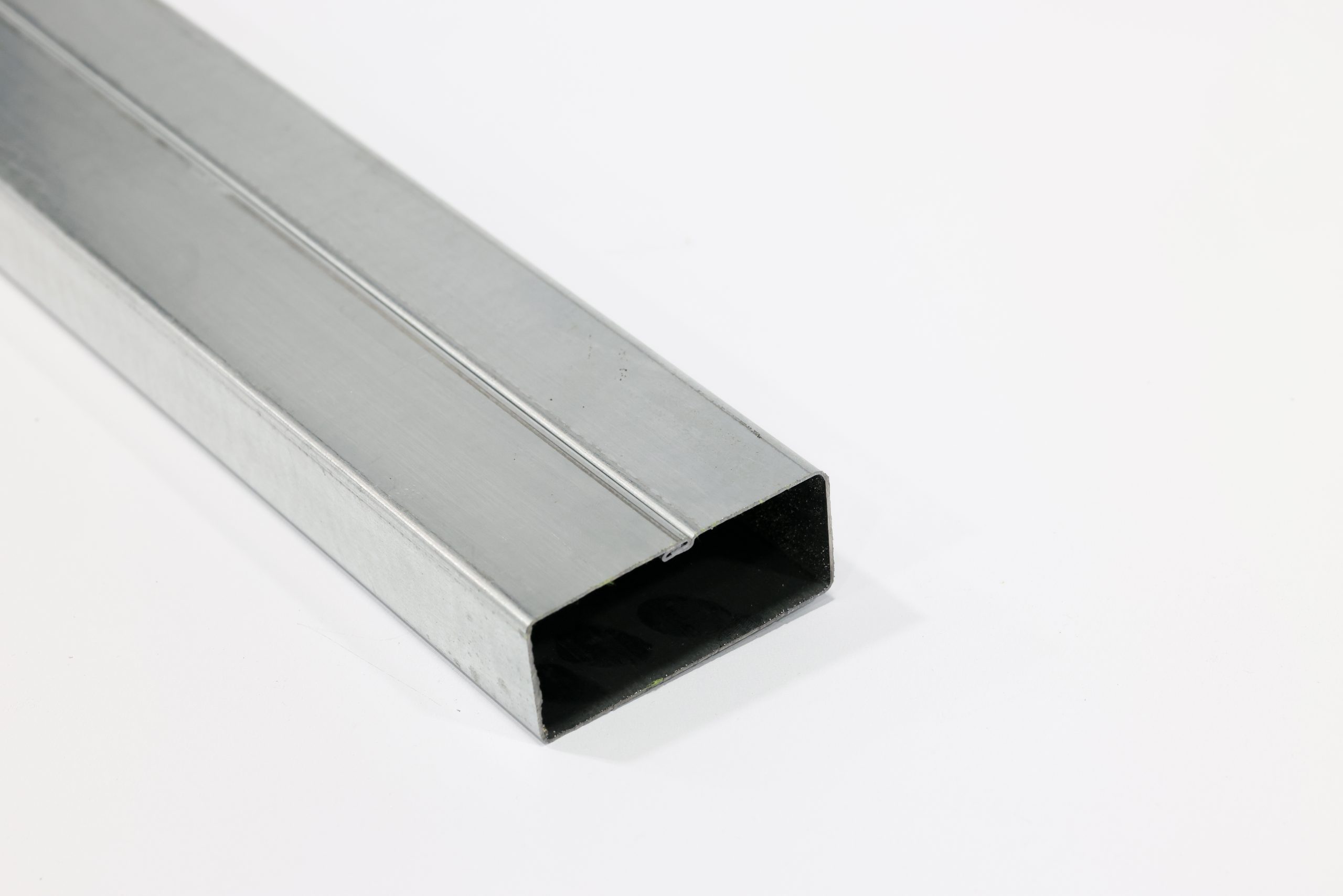

The 235 Box Girt is a multi-functional steel member used for lateral support and internal door framing. It is engineered to provide a perfectly straight edge, eliminating the warping and twisting commonly associated with lumber. These girts are designed to fit precisely within the "pocket" of the 2200 Series Side Rails, creating a cohesive all-metal frame.

• Application: Ideal for use as lateral girts during framing to provide a rigid, lightweight skeleton for the door.
• Available Lengths: Standard sections available in 10', 12', 14', and 16'.
• Key Benefit: Provides a consistent, flat surface for attaching metal siding, ensuring the finished door looks professional and operates without binding.

• Vertical Orientation: When installed vertically, it is used to frame 1.5" thick doors.
• Horizontal Orientation: When installed horizontally, it accommodates 3.5" thick doors.

• Material: High-strength 20-gauge galvanized steel.
• Corrosion Resistance: The galvanized finish prevents the rot and rust issues associated with moisture-trapping wooden frames.

The 2244 Horizontal Bottom Rail is a heavy-duty extruded aluminum component from MWI Components, specifically engineered to form the bottom structural edge of a sliding door. It serves two critical roles: providing a rigid frame for the base of the door and acting as the female track that slides over the TBSG Bottom Guide system.

• Material: High-strength, rust-proof extruded aluminum.
• Design Profile: Features a specialized "C-channel" or "U-shape" bottom cavity designed to house and glide over the 18-gauge rail of the TBSG Bottom Guide.
• Door Thickness: Specifically designed for 1-1/2" (1.5") thick door systems.
• Compatibility: Part of the 2200 Series door framing system; works in tandem with 2200 Vertical Side Rails and 235 Box Girts (TBG Series).
• Available Lengths: Standard sections available in 8', 10', 12', 14', 16', 18' to match the width of your door leaf.

• Warp-Free Base: Unlike wood 2x4s, which rot and bow when exposed to ground-level moisture and snow, this aluminum rail remains perfectly straight.
• Integrated Guide Track: The bottom of the rail is shaped to capture the TBSG Bottom Guide. This prevents the door from "flapping" in the wind or being pushed inward by animals or equipment.
• Clean Aesthetics: Provides a professional, finished look to the bottom of the door, neatly concealing the cut edges of the metal siding and internal box girts.
• Lightweight Strength: Adds significant lateral rigidity to the door leaf without the excessive weight of steel or heavy timber, making large doors easier to operate manually.

For a standard 1.5" door leaf, the 2244 Bottom Rail is the "anchor" of the framing system. It is the component that makes your door compatible with the TBSG Bottom Guide with Brackets & Door Stop.

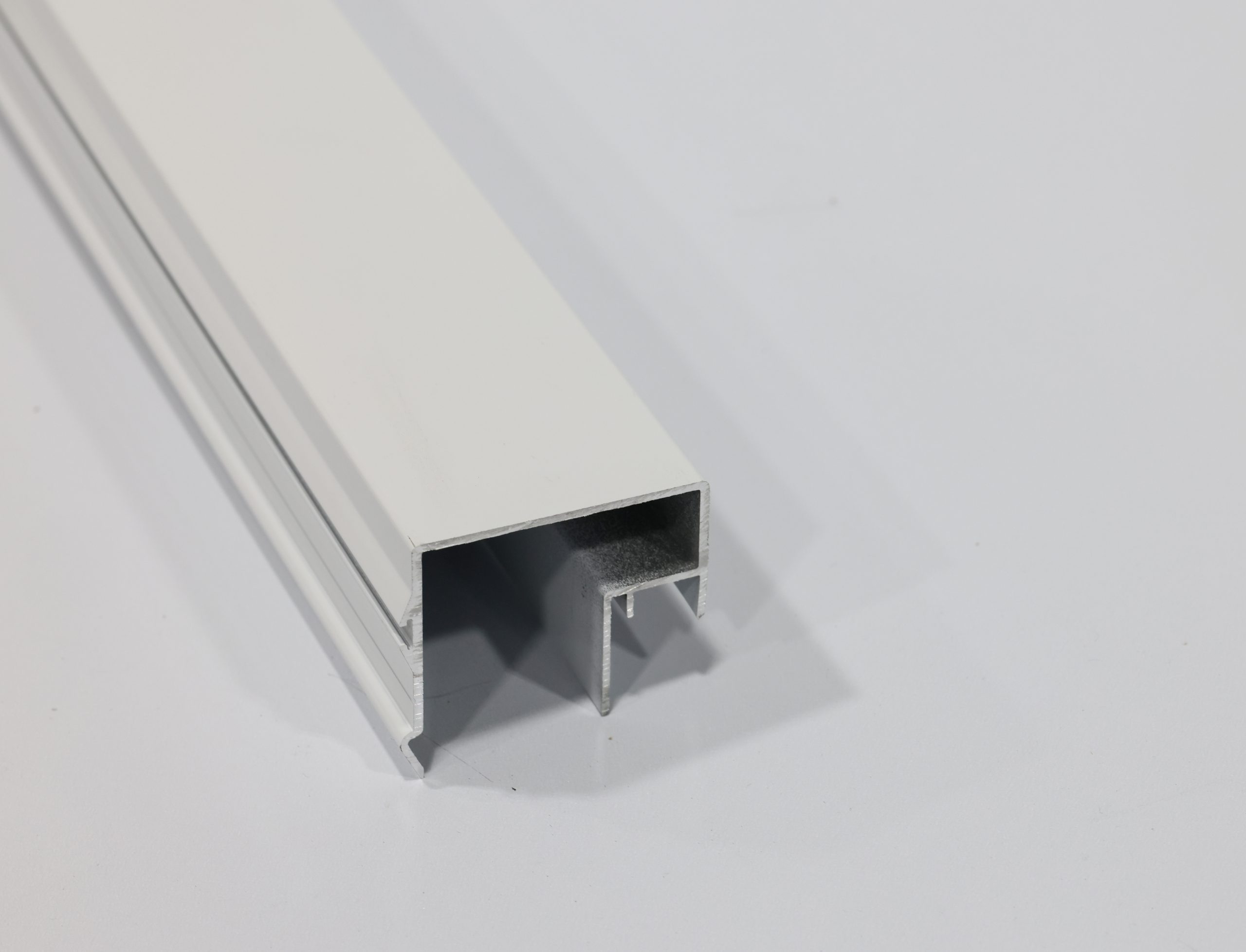

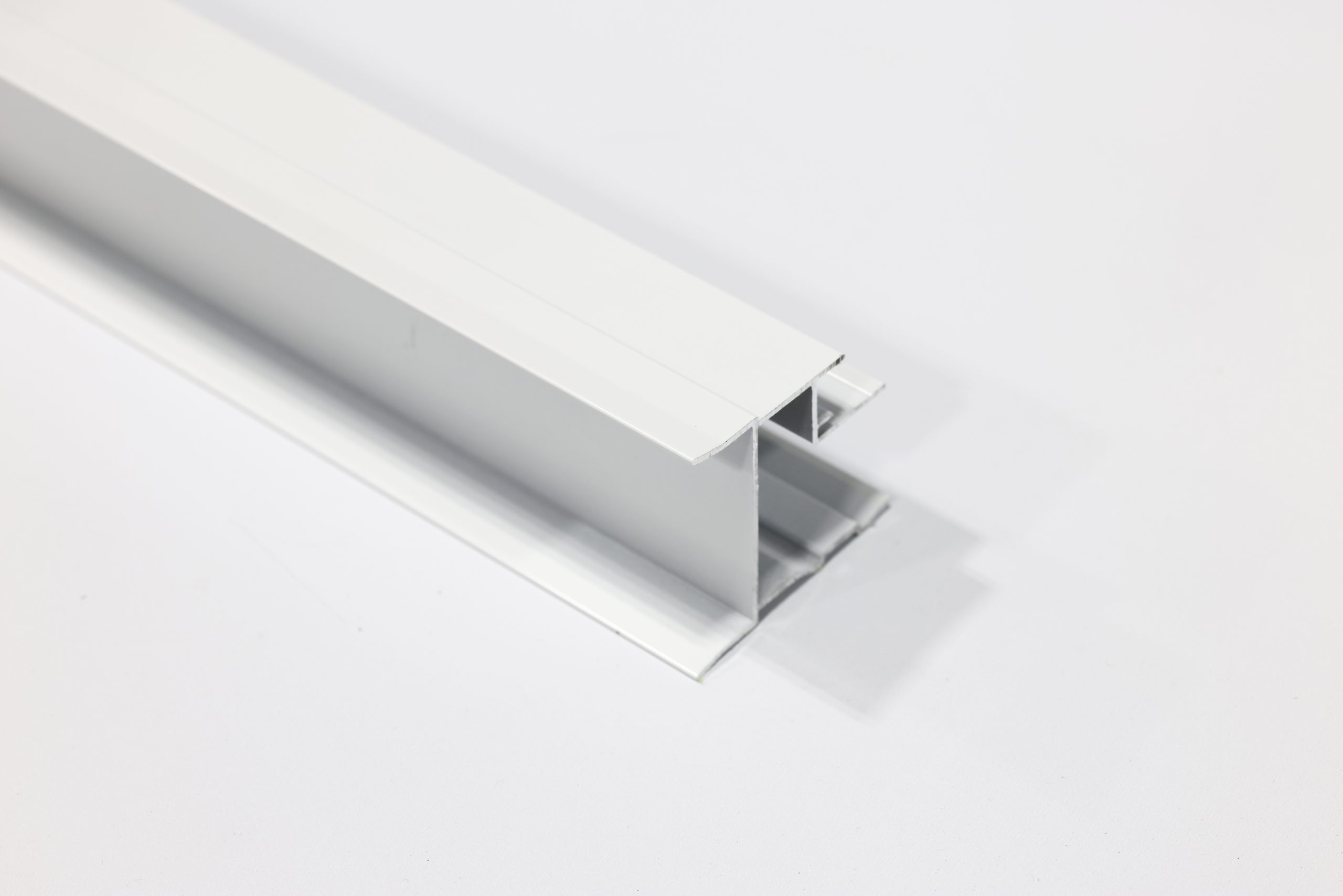

The 2216 Vertical H-Rail is a specialized architectural extrusion from MWI Components, specifically designed for split (bi-parting) sliding doors. While the 2200 Side Rail finishes the outer edges of a door, the 2216 H-Rail is used at the center meeting point where two door leaves come together.

• Material: High-strength extruded aluminum.
• Design Profile: Features a distinct "H" shape that creates a recessed pocket on both sides of the rail.
• Compatibility: Engineered to work with the  2200 Series door systems.
• Internal Framing: Designed to house and secure the 235 Box Girts (TBG Series) as the internal lateral supports.
• Door Thickness: Fits standard 1-1/2" thick door assemblies.

• Structural Integrity: Acts as a heavy-duty vertical "spine" for the center of the door, preventing the tall vertical edges from bowing or warping over time.
• Professional Aesthetics: Conceals the cut ends of the metal siding and internal steel girts at the most visible part of the door system—the center.
• Rust-Proof Performance: The aluminum construction ensures the rail will never rust, rot, or require painting, providing a maintenance-free alternative to wood 2x4s.

• Placement: On a split door system, the 2216 H-Rail is installed on the leading vertical edge of one door leaf (the edge that meets in the middle).
• Assembly: The 235 Box Girts slide into the side pocket of the H-Rail and are fastened using self-tapping screws.

• Standard Lengths: Available in common door heights including 8', 10', 12', 14', and 16'.

For a single sliding door, you only need 2200 Side Rails. For a split (bi-parting) door, you will use the 2200 Side Rails and the 2216 H-Rail at the center where the doors meet.

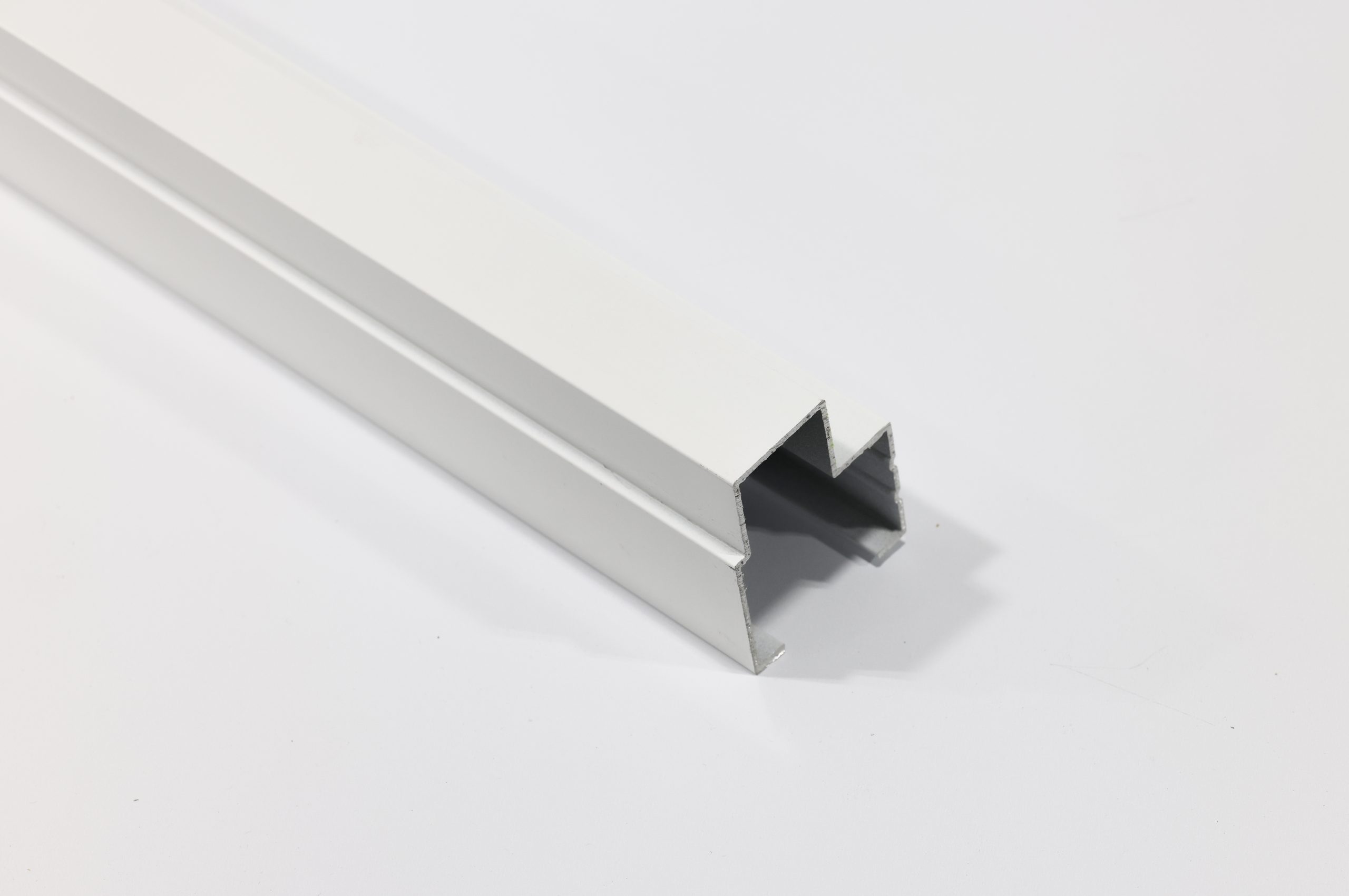

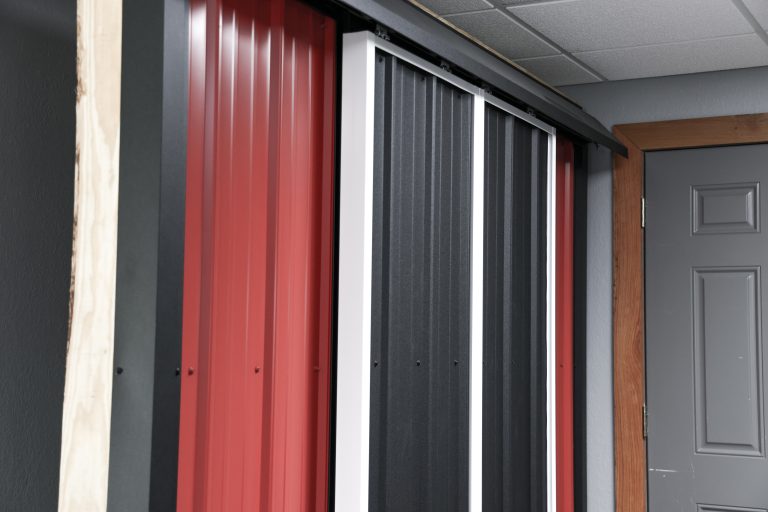

The 2200 Series Vertical Side Rail is a high-strength aluminum component manufactured by MWI Components, specifically designed to form the vertical outer frame of sliding doors in post-frame and agricultural buildings. This rail acts as the "backbone" of the door leaf, providing a clean, finished edge while housing the internal framing members.

• Material: High-quality extruded aluminum for maximum strength-to-weight ratio.
• Corrosion Resistance: Naturally rust-proof, making it an ideal upgrade over steel or wood in high-moisture environments like livestock barns.
• Warp-Free: Unlike traditional 2x4 wood framing, these aluminum rails will not bow, twist, or rot, ensuring the door stays square for years.

• Internal Framing: Designed to accept the 235 Box Girt (TBG Series) as the internal lateral support. The Box Girt slips into the 2200 Side Rail to create a rigid, interlocking skeleton.
• Door Thickness: Primarily used for 1-1/2" thick door systems.
• Bottom Rail Compatibility: Pairs seamlessly with the 2244 Bottom Rail and is tracked by the TBSG Bottom Guide system.

• Rigid Construction: The extruded profile is designed to resist wind-loading and lateral pressure, keeping the door flat against the building.

• Standard Lengths: Typically available in 8', 10', 12', 14', and 16' sections to accommodate various door heights.

This item is a separate component from the 235 Box Girts. For a complete door leaf, you will need two 2200 Vertical Side Rails (one for each side) and the appropriate number of lateral Box Girts based on the height of your door.

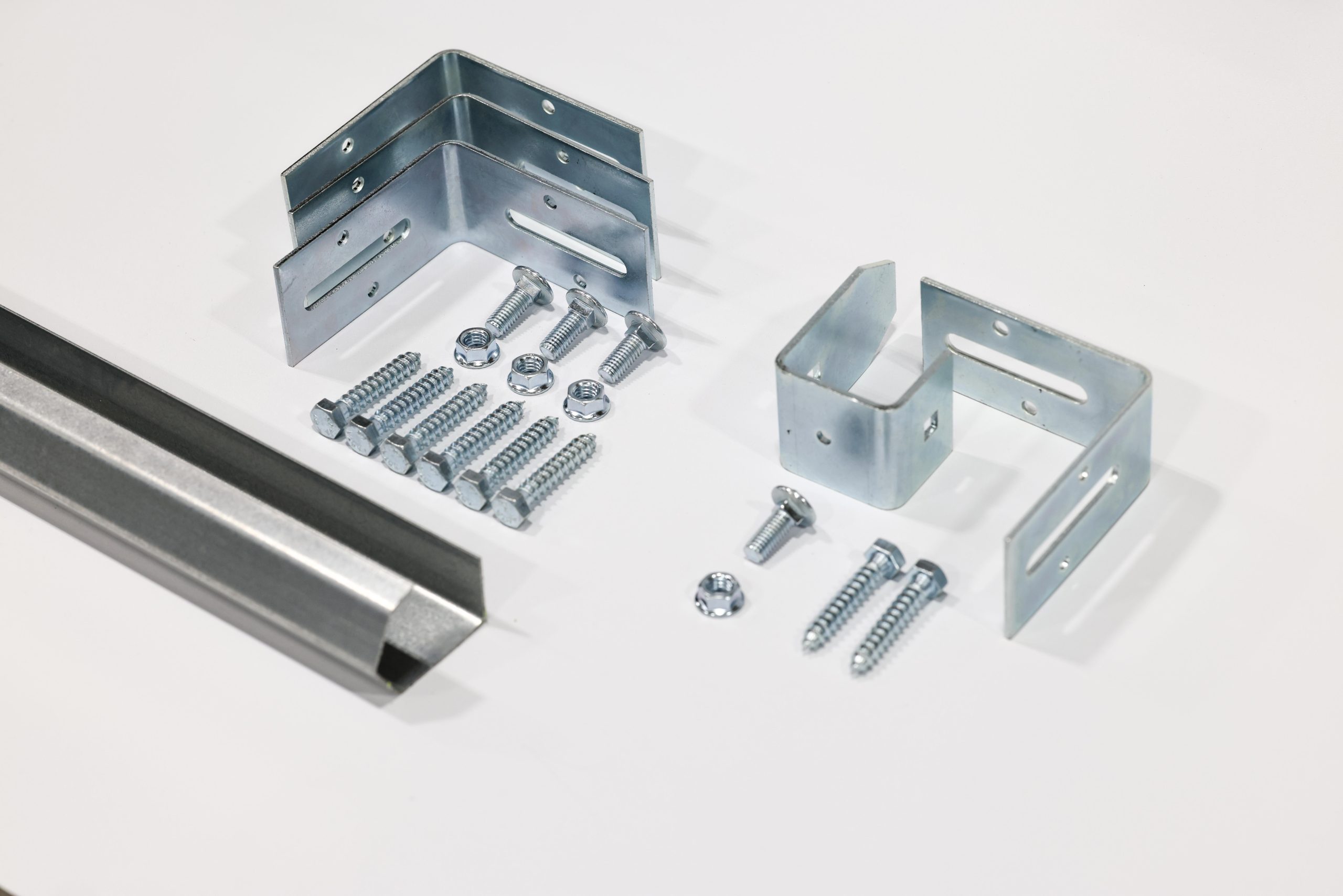

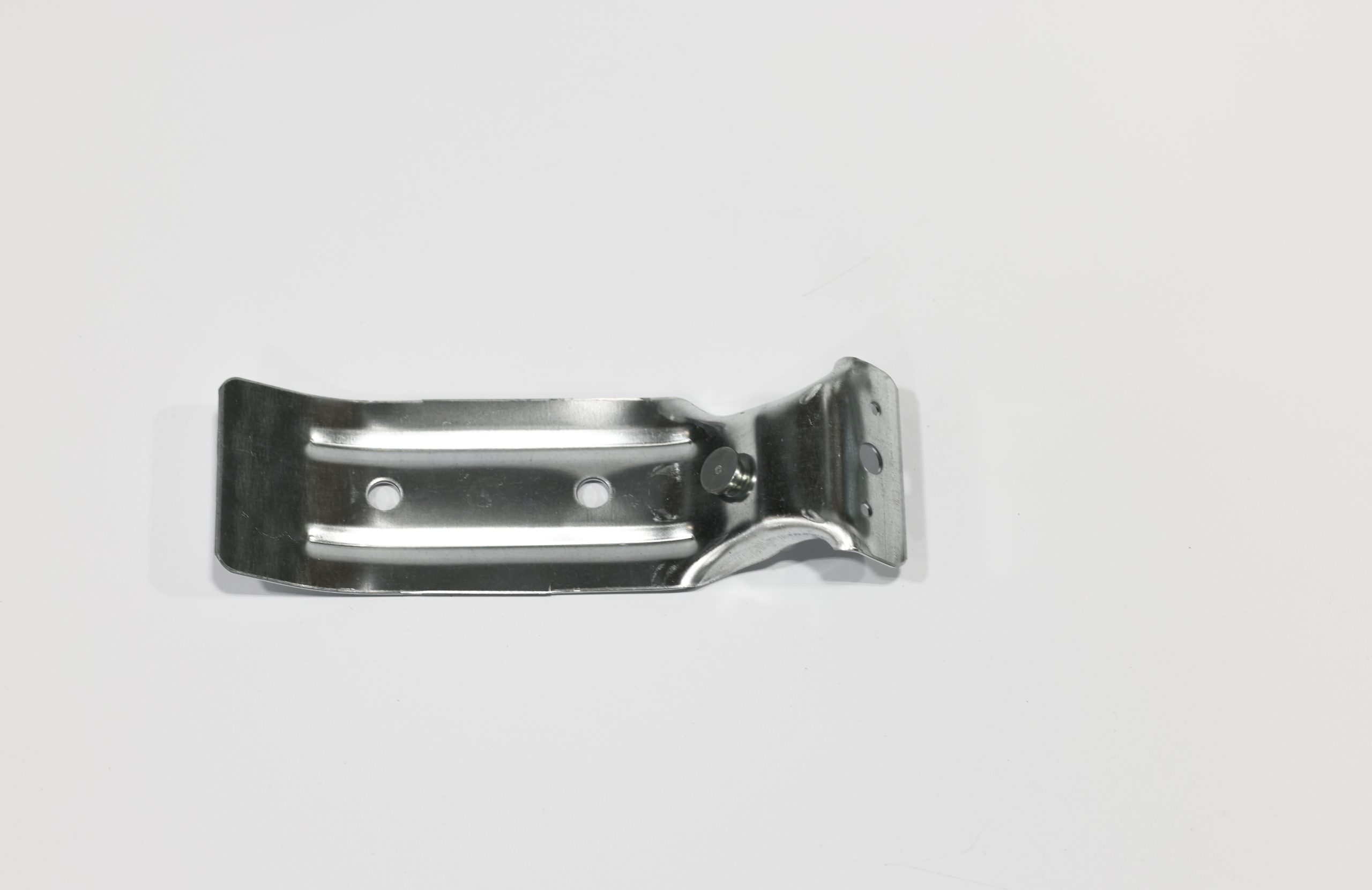

The BC3-201 Face Mount Track Bracket is an essential hardware component from MWI Components, specifically designed to support both the BC201 Versa Track and a protective track cover. This bracket provides the necessary clearance to house the track while offering an integrated attachment point for the flashing that shields the trolley and track assembly from the elements.

• Mounting Type: Face Mount (attaches directly to the vertical surface of the header board or track plank).
• Compatibility: Exclusively for use with the BC201 Versa Track (14-gauge round track).
• Material: Manufactured from heavy-duty galvanized steel for superior corrosion resistance.
• Bracket Spacing: MWI Components recommends installing these brackets every 24 inches on center to maintain the 600 lb door weight rating.

• Versa Rivet Technology: Features a protruding rivet head that engages with the reverse-punched keyhole slots on the BC201 track.
• Ease of Installation: The bracket is aligned with the track slot and driven into place with a hammer until the rivet shoulder is seated. It can then be pivoted for final alignment before being secured to the building with a 1/4" lag bolt (not included).
• System Protection: By supporting a track cover, this bracket helps prevent ice, snow, and debris from accumulating in the round track, ensuring smooth door operation year-round.

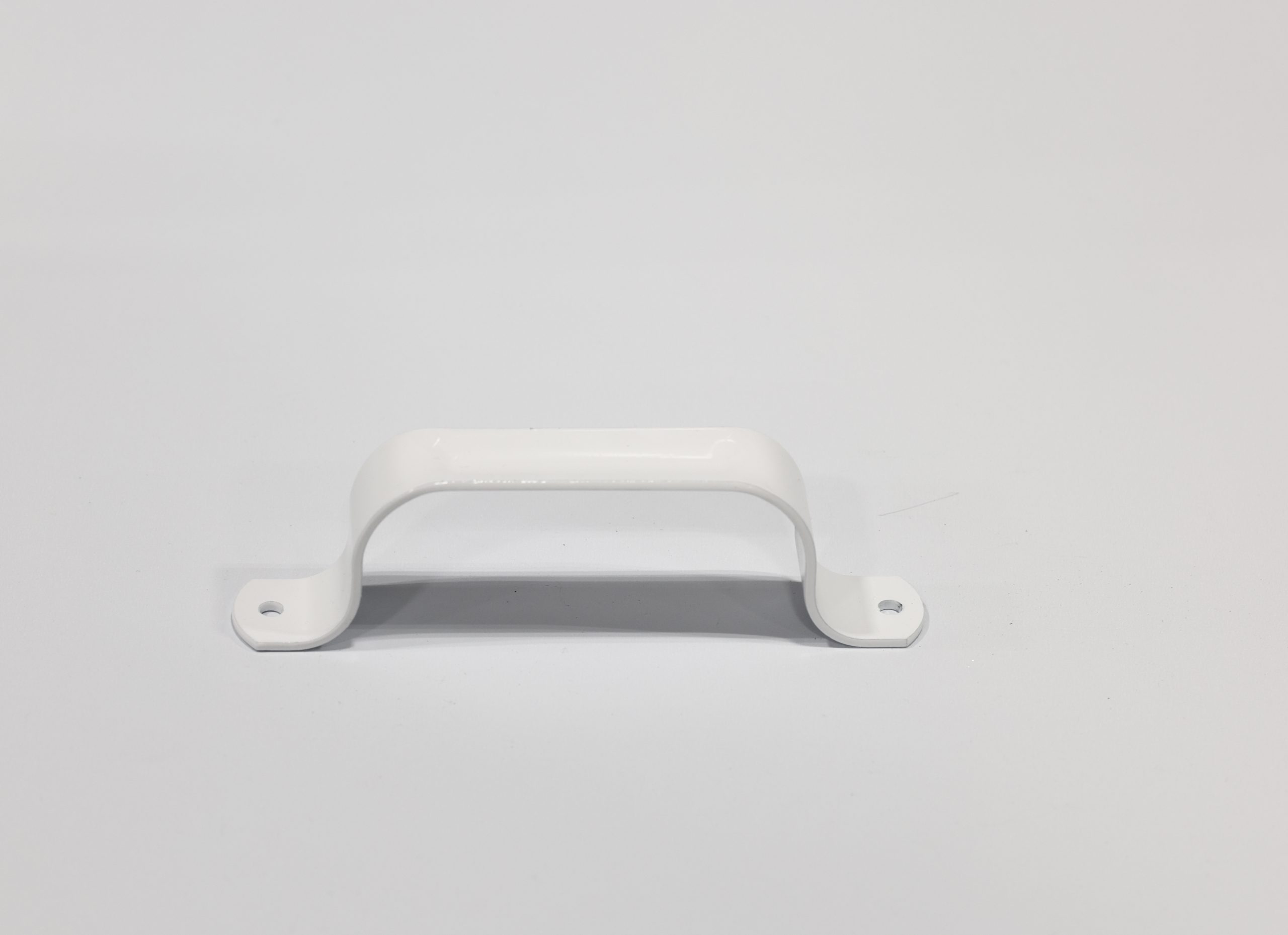

The L207 7" White Door Pull from MWI Building Components is a simple, durable handle designed for sliding doors and similar applications. The clean white finish offers a neat, unobtrusive appearance that blends well with a variety of door styles in agricultural, residential, or light commercial settings.

• Product Type: Recessed Door Pull (flush-mounted handle designed for sliding doors).
• Size: 7-inch overall length for a comfortable hand grip and easy operation.
• Finish: White finish provides a clean appearance that matches common door colors and trim.

 Application: Ideal for sliding barn doors, shop doors, shed doors, and other utility door systems.

• Durable Construction: Built for consistent daily use in agricultural, residential, and light commercial environments.
• Ease of Installation: Designed for straightforward mounting using standard fasteners (not included).

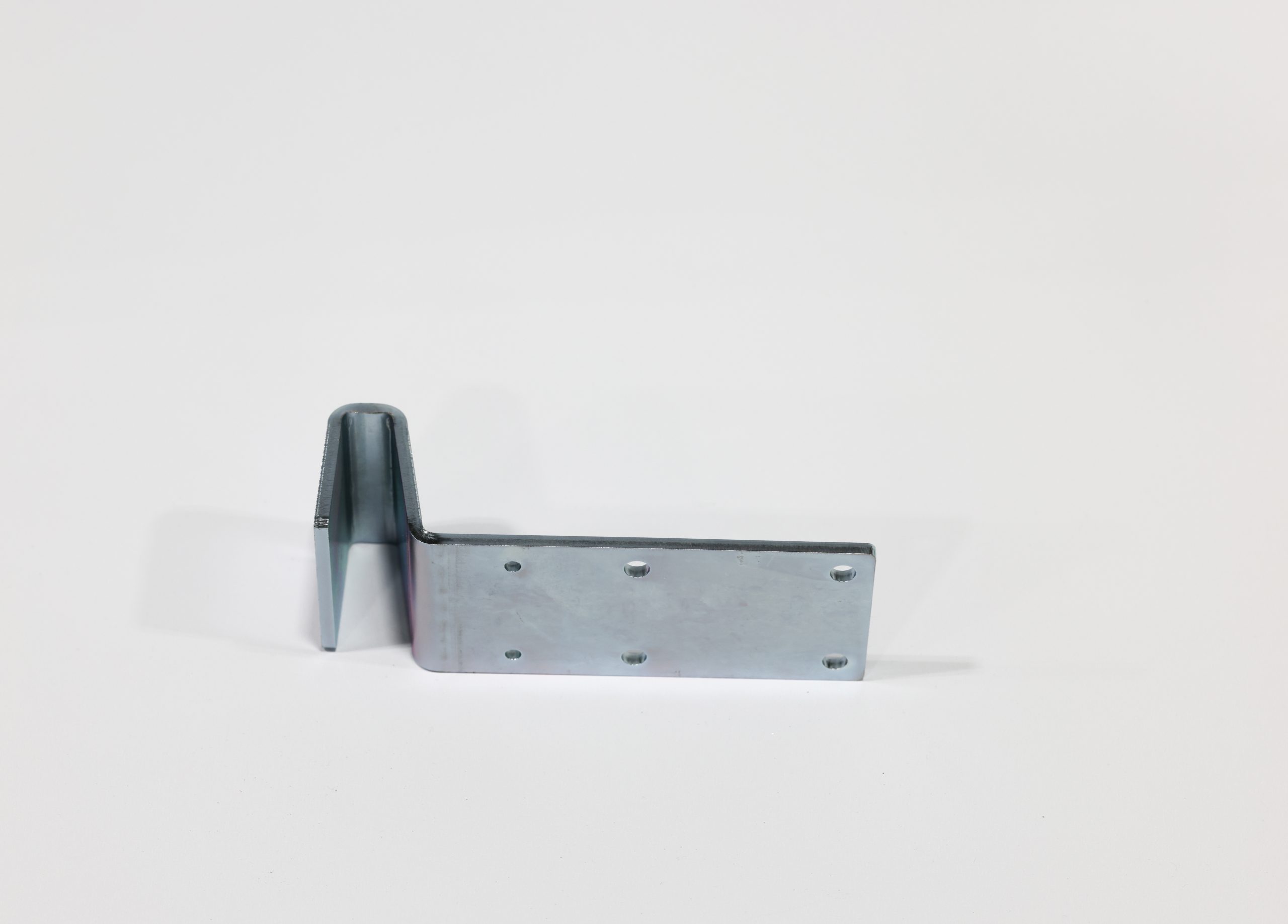

The PB63 Jamb Mount Stop from MWI Building Components is a heavy-duty door stop designed to control and secure sliding door movement at the jamb. Engineered to engage the door in both the open and closed positions, this component helps prevent overtravel while maintaining proper door alignment within the track system.

Manufactured from strong 7-gauge steel, the PB63 provides reliable stopping power and durability in demanding agricultural, commercial, and utility building applications. Its jamb-mounted configuration allows it to be installed directly to the door jamb or structural surface, creating a dependable stopping point for sliding door systems.

• Mounting Type: Jamb Mount (attaches directly to the door jamb or structural framing).
  • Door Engagement: Designed to engage the door in both the open and closed positions to help control door travel.
  • Door Compatibility: Designed for use with 1.5" thick doors.
  • Material: Constructed from 7-gauge steel for strength and long-term durability.
  • Stop Depth: 2.25" jamb mount stop designed to properly engage compatible door systems.
  • Durability: Built to withstand frequent use in demanding building environments.

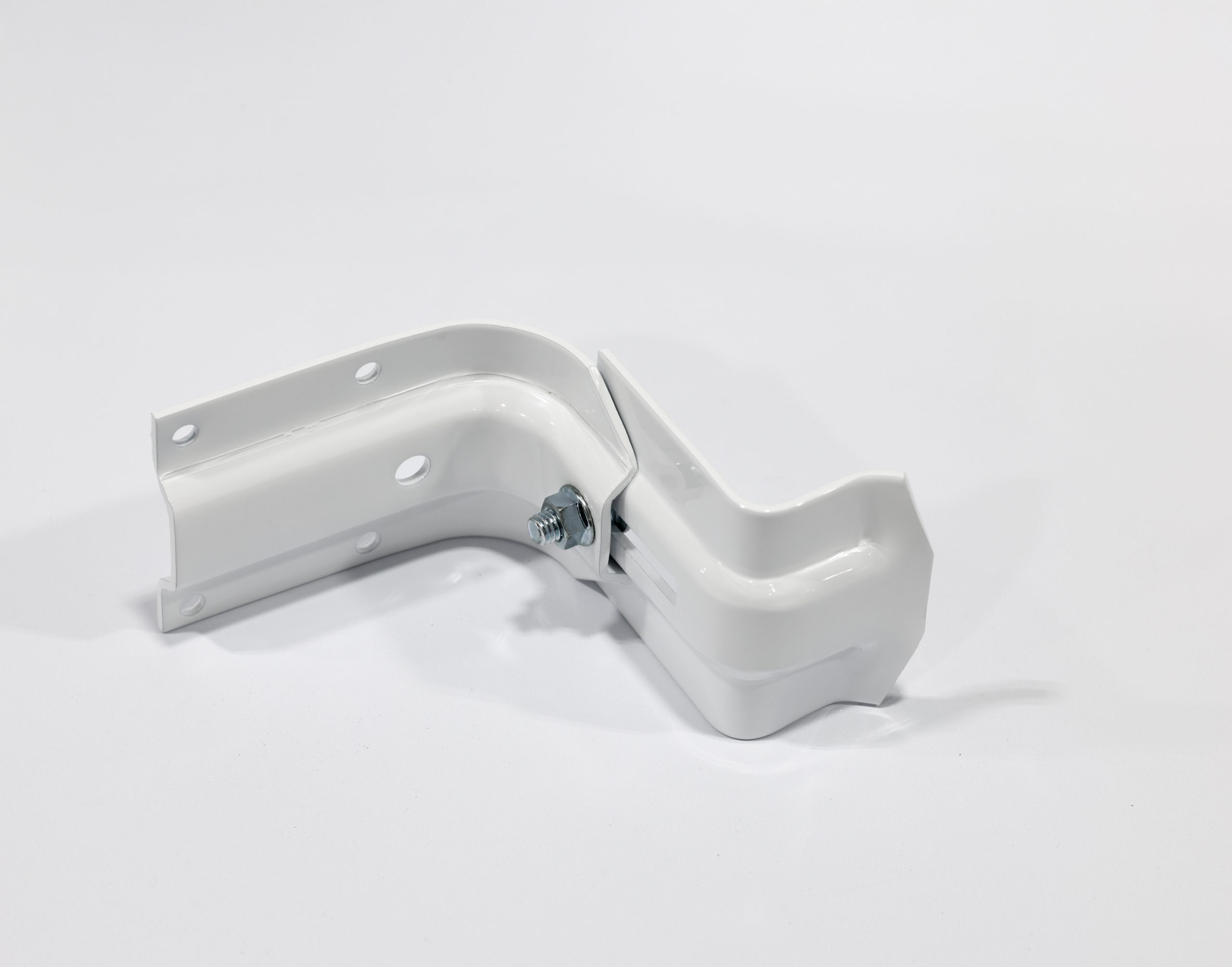

The PB66 White Door Stop from MWI Building Components is a heavy-duty, adjustable stop designed to control sliding door travel and protect both the door and surrounding structure. Its adjustable design allows for precise positioning, making it suitable for a range of door setups while ensuring consistent stopping performance.

Finished in white for a clean, uniform appearance, the PB66 integrates easily with common door systems in agricultural, residential, and light commercial applications. Its robust construction is built to withstand repeated use, providing dependable operation in high-traffic environments.

• Product Type: Adjustable Door Stop (designed to control and limit sliding door travel).
• Adjustability: Allows for fine-tuned positioning to accommodate various door installations.
• Door Compatibility: Suitable for doors up to 4 1⁄4" thick.
• Finish: White finish for a clean, low-profile appearance.
• Heavy-Duty Construction: Built for durability and long-term performance in demanding applications.
• Function: Helps prevent overtravel and reduces impact stress on doors and hardware.

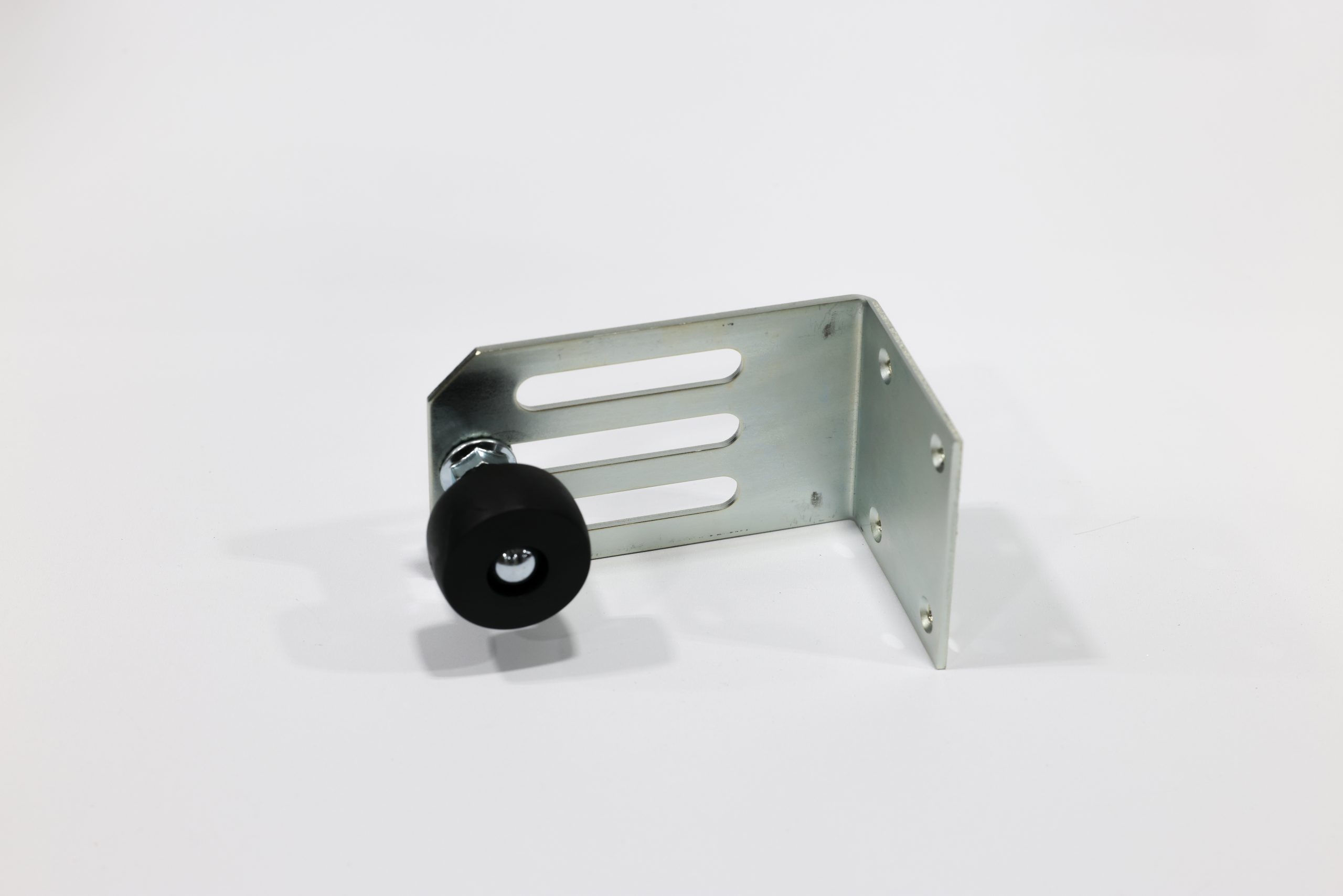

The PB97S Sliding Door Guide from MWI Building Components is designed to hold sliding doors securely against the wall, helping maintain proper alignment and preventing unwanted movement during operation. This guide ensures smoother door travel while reducing sway, making it an essential component for stable and reliable sliding door performance.

Featuring an adjustable design, the PB97S accommodates a range of door thicknesses, allowing for flexible installation across various door systems. The integrated 2" diameter wheel provides consistent contact and smooth guidance along the door surface, minimizing friction and wear over time.

• Function: Holds sliding doors tight to the wall to reduce movement and improve stability.
• Adjustability: Designed to fit doors ranging from 1 3⁄4" to 3 3⁄4" thick.
• Wheel Size: Equipped with a 2" diameter wheel for smooth, consistent guidance.
• Compatibility: Also fits within the 2244 bottom rail system.
• Application: Ideal for sliding barn doors, shop doors, and other agricultural or utility door systems.
• Durable Construction: Built for long-term use in demanding environments.

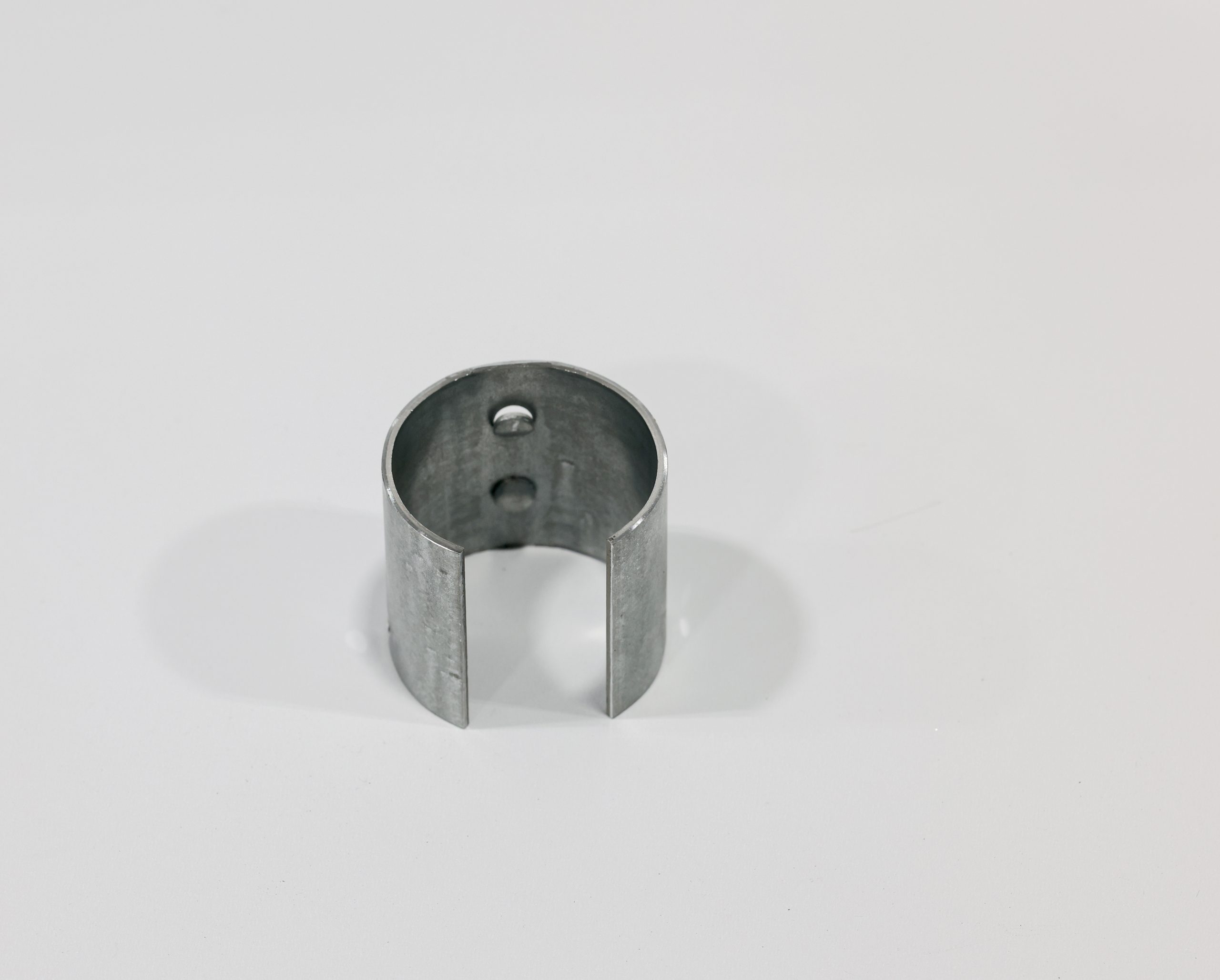

The BC1SP-201 Splice Collar from MWI Building Components is designed to securely connect two sections of round track, creating a continuous and stable track system for sliding door applications. This component ensures proper alignment between track sections, helping maintain smooth trolley movement and reliable door operation.

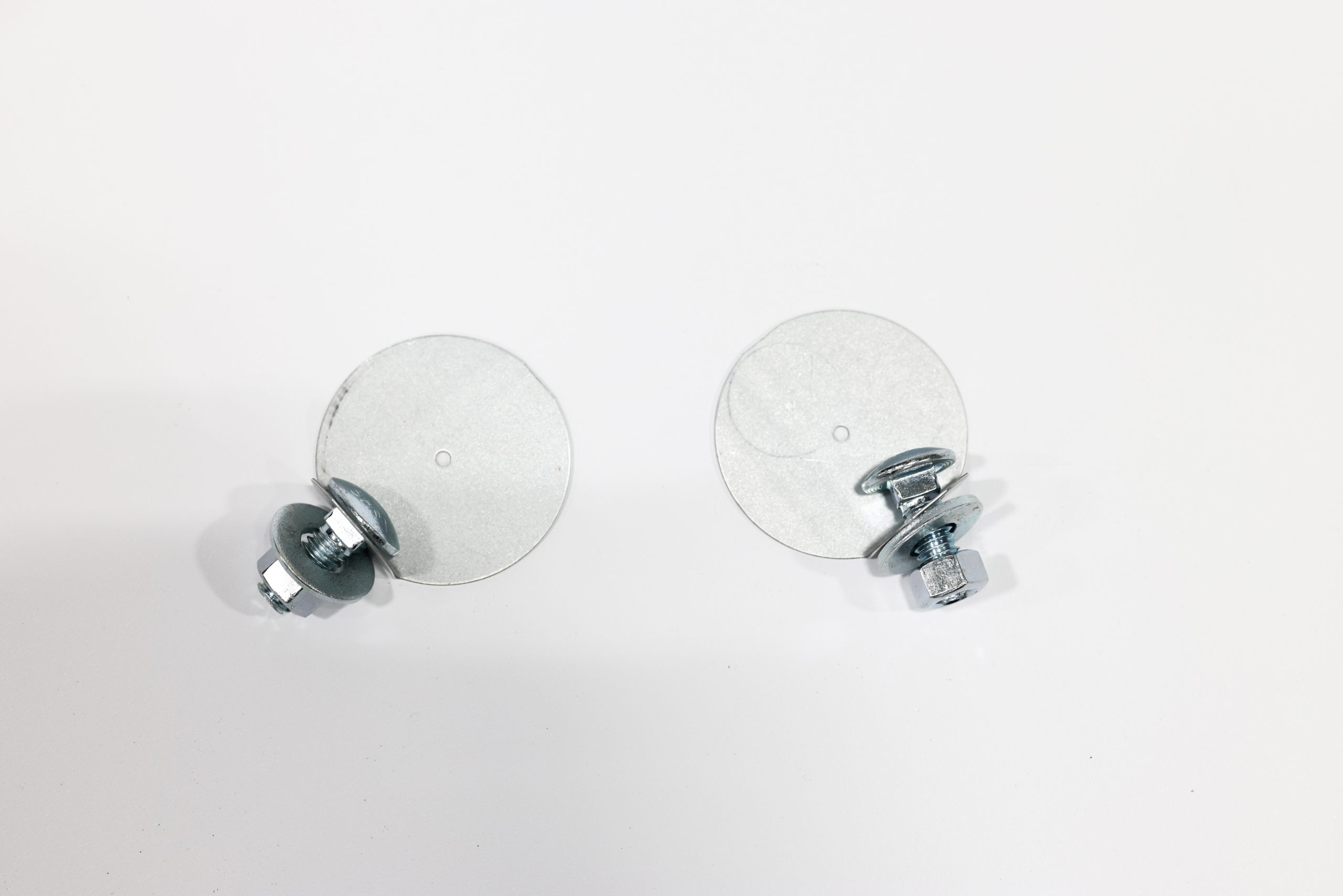

The PB201ECS Round Track End Caps from MWI Building Components are designed to provide a clean, secure finish to round track systems.

Each set is packaged in pairs and includes the necessary fastening hardware for installation. Designed for compatibility with MWI round track systems, these end caps offer a reliable and finished solution for completing sliding door track installations.

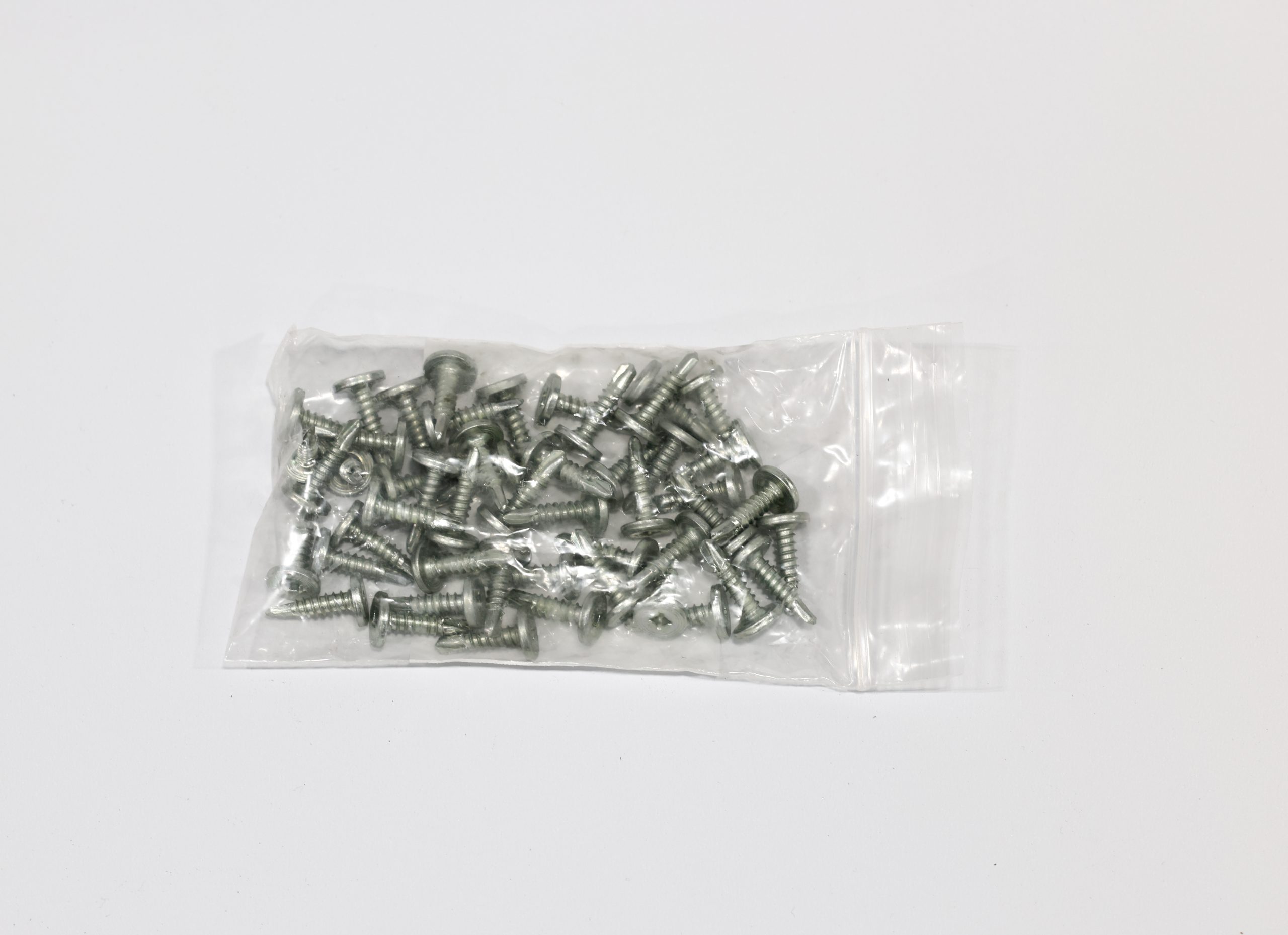

The T80040000L #10 x 3/4" SD3 Pancake Quad Head Screws are designed for secure attachment in metal-to-metal fastening applications. Featuring a low-profile pancake head, these screws provide a clean, flush finish while offering strong holding power in track systems, brackets, and other hardware installations.

Engineered with an SD3 self-drilling point, these screws eliminate the need for pre-drilling in most applications, improving installation speed and efficiency. The quad head design allows for better driver engagement.
